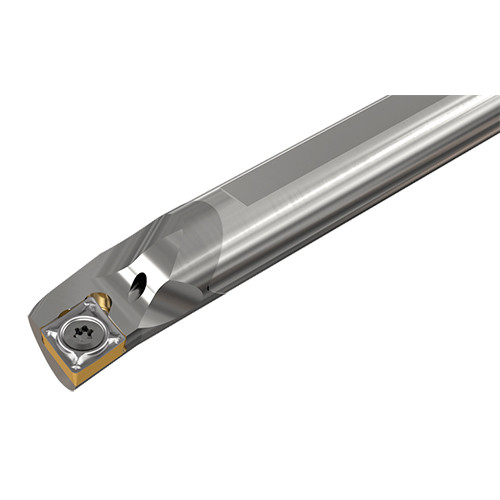

S10L SCLCL-06
Int. Turning Tool; 0.354″ 0.394″ Shank Dia. × 5.512″ OAL × 0.512″ Min. Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 140 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 9 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 7 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT 060204-14 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 13 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter. | Country of Origin | Israel |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
0.234
